参考Feign实现一个http-client

words: 3.4k    time: 18min    views:
开发笔记
http feign

一个Java Http调用客户端，基于netflix feign的实现思路，使用apache的httpclient进行调用

https://github.com/cowave5/http-client

Feign的历史

Feign是Netflix发布的一款轻量级Rest客户端框架，提供了一种声明式的服务调用组件，通过Feign只需声明一个接口并通过注解进行简单的配置即可实现对Http接口的绑定。然后就可以像调用本地方法一样来调用远程服务，而完全感觉不到是在进行远程调用

Feign支持多种注解，比如Feign自带的注解以及JAX-RS注解，但遗憾的是Feign本身并不支持Spring mvc注解，这无疑会给广大Spring用户带来不便。于是Spring Cloud又对Feign进行了封装，使其方便集成到Spring项目中，并添加了对Spring mvc注解的支持，以及简化与负载均衡、服务注册发现、断路器等组件的集成，所以集成之后又叫Spring Cloud Feign

  • 2013年6月，Netflix Feign发布了第一个版本：1.0.0
  • 2015年3月，spring-cloud-starter-feign发布版本：1.0.0.RELEASE
  • 2016年7月，Netflix Feign发布最后一个版本：8.18.0
  • 2016年，     Netflix将Feign捐献给社区，并改名为OpenFeign
  • 2016年7月，OpenFeign发布首个版本：9.0.0，之后由社区维护一直持续发布
  • 2016年9月，spring-cloud-starter-feign将依赖从Netflix Feign改为OpenFeign，并发布了1.2.0.RELEASE
  • 2017年11月，Spring Cloud团队将两个”feign starter”进行合并，发布了spring-cloud-starter-openfeign的首个版本：1.4.0.RELEASE，以及spring-cloud-starter-feign的1.4.0.RELEASE版本
  • 2019年5月，spring-cloud-starter-feign发布了最后一个换皮版本：1.4.7.RELEASE，至此，过渡期结束

Feign的实现

Feign的实现是典型的动态代理模式，这里选择在Netflix Feign 8.18.0版本上进行改造，这样可以按照自己的意愿来进行Http远程服务调用，也方便自由修改，基本还是参考Feign原来的思路，主要简化了一些类的实现，换成使用HttpClient进行调用（原实现使用的Jdk提供的HttpURLConnection，不支持Patch方法），具体的类图可以参考下面UML：

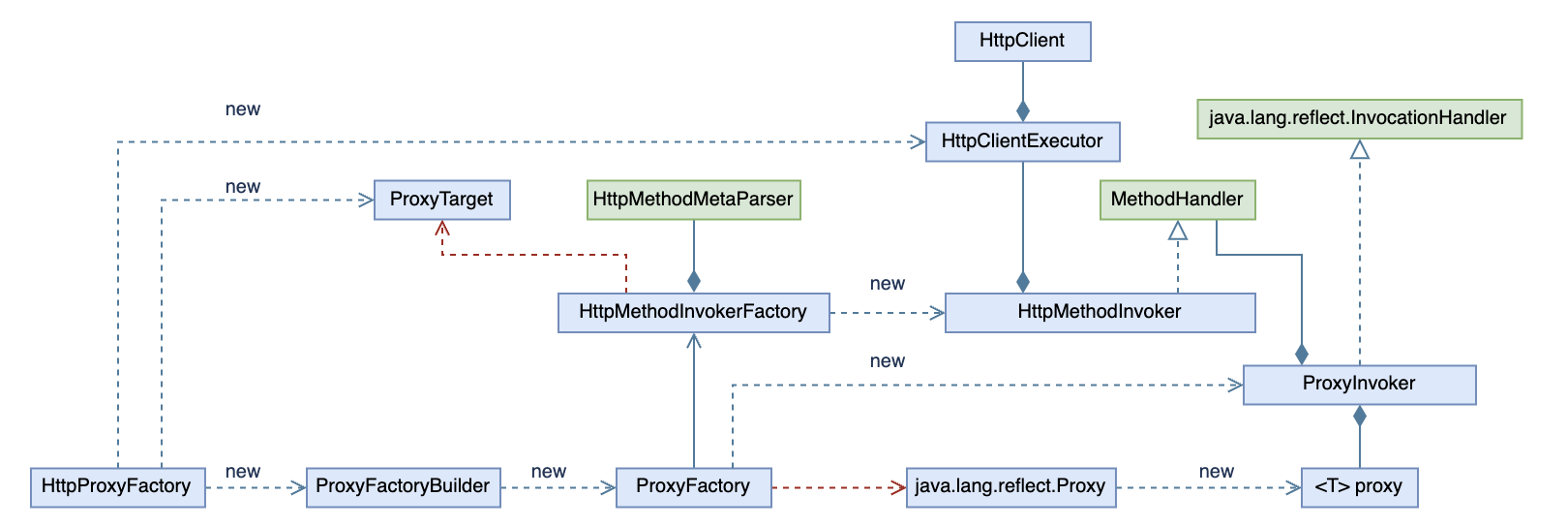

从UML可以看出来，ProxyFactory之前只是做一些构建准备工作，将被代理的内容打包成ProxyTarget，创建一个HttpClientExecutor实例给后面用；

ProxyFactory中会进行真正的代理创建，先委托HttpMethodInvokerFactory将ProxyTarget中的目标方法翻译成对应的HttpMethodInvoker集合；然后交给新建的ProxyInvoker实例，其实现了Jdk的InvocationHandler接口，最终可以用来创建Proxy动态代理实例

ProxyFactory

ProxyFactory的任务就是将ProxyTarget中的目标方法列表转化成HttpMethodInvoker集合，然后包装成ProxyInvoker，并最终用来创建Proxy实例

https://github.com/cowave5/http-client/blob/master/src/main/java/com/cowave/commons/client/http/invoke/proxy/ProxyFactory.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public class ProxyFactory {

    private final HttpMethodInvokerFactory httpMethodInvokerFactory;

    public ProxyFactory(HttpMethodInvokerFactory httpMethodInvokerFactory) {
        this.httpMethodInvokerFactory = httpMethodInvokerFactory;
    }

    @SuppressWarnings("unchecked")
    public <T> T newProxy(ProxyTarget<T> proxyTarget) throws UnsupportedEncodingException {
        // 默认方法
        List<DefaultMethodInvoker> defaultProxyInvokerList = new LinkedList<>();

        // Http调用方法
        Map<String, MethodInvoker> httpProxyInvokerMap = httpMethodInvokerFactory.create(proxyTarget);

        Map<Method, MethodInvoker> methodInvokeHandlerMap = new LinkedHashMap<>();
        for (Method method : proxyTarget.type().getMethods()) {
            if (method.getDeclaringClass() == Object.class) {
                // object方法不进行代理
            } else if (HttpMethodMetaParser.isDefault(method)) {
                DefaultMethodInvoker handler = new DefaultMethodInvoker(method);
                defaultProxyInvokerList.add(handler);
                methodInvokeHandlerMap.put(method, handler);
            } else {
                methodInvokeHandlerMap.put(
                        method, httpProxyInvokerMap.get(HttpMethodMetaParser.methodKey(proxyTarget.type(), method)));
            }
        }

        // 创建代理
        T proxy = (T) Proxy.newProxyInstance(
                proxyTarget.type().getClassLoader(),
                new Class<?>[]{proxyTarget.type()},
                new ProxyInvoker(proxyTarget, methodInvokeHandlerMap));
        for (DefaultMethodInvoker methodHandler : defaultProxyInvokerList) {
            methodHandler.bindTo(proxy);
        }
        return proxy;
    }
}

HttpMethodInvokerFactory

HttpMethodInvokerFactory的任务就是帮助ProxyFactory将目标方法转化成HttpMethodInvoker，然后它会依赖HttpMethodMetaParser来进行目标解析

https://github.com/cowave5/http-client/blob/master/src/main/java/com/cowave/commons/client/http/invoke/proxy/HttpMethodInvokerFactory.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public class HttpMethodInvokerFactory {
    private final HttpExecutor httpExecutor;
    private final HttpMethodMetaParser metaParser;
    private final HttpEncoder encoder;
    private final HttpDecoder decoder;
    private final Options options;
    private final List<HttpClientInterceptor> httpClientInterceptors;
    private final HttpExceptionHandler exceptionHandler;

    private final boolean ignoreError;
    private final Level level;

    public Map<String, MethodInvoker> create(ProxyTarget<?> proxyTarget) throws UnsupportedEncodingException {

        List<HttpMethodMeta> metaList = metaParser.parse(proxyTarget.type());

        Map<String, MethodInvoker> result = new LinkedHashMap<>();
        for (HttpMethodMeta meta : metaList) {
            HttpRequestFactory httpRequestFactory;
            if (meta.getMultipartFileIndex() != null
                    || meta.getMultipartFormIndex() != null || !meta.getMultipartParams().isEmpty()) {
                // multipart/form-data
                httpRequestFactory = new MultipartRequestFactory(meta);
            } else if (meta.getBodyIndex() != null) {
                // 存在body
                httpRequestFactory = new BodyRequestFactory(meta, encoder);
            } else {
                httpRequestFactory = new HttpRequestFactory(meta);
            }

            // <methodKey, MethodHandler>
            result.put(meta.getMethodKey(),
                    new HttpMethodInvoker(proxyTarget, meta, httpRequestFactory,
                            httpExecutor, httpClientInterceptors, options, decoder, level, ignoreError, exceptionHandler));
        }
        return result;
    }
}

ProxyInvoker

到了ProxyInvoker就是具体的方法调用了，如果通过Proxy代理实例的调用的话，就会将目标方法调用转成对应的Http远程调用了

https://github.com/cowave5/http-client/blob/master/src/main/java/com/cowave/commons/client/http/invoke/proxy/ProxyInvoker.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class ProxyInvoker implements InvocationHandler {

    @SuppressWarnings("rawtypes")
    private final ProxyTarget proxyTarget;

    private final Map<Method, MethodInvoker> methodInvokeHandlerMap;

    @SuppressWarnings("rawtypes")
    ProxyInvoker(ProxyTarget proxyTarget, Map<Method, MethodInvoker> methodInvokeHandlerMap) {
        this.proxyTarget = proxyTarget;
        this.methodInvokeHandlerMap = methodInvokeHandlerMap;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        if ("equals".equals(method.getName())) {
            try {
                Object otherHandler = args.length > 0 && args[0] != null ? Proxy.getInvocationHandler(args[0]) : null;
                return equals(otherHandler);
            } catch (IllegalArgumentException e) {
                return false;
            }
        } else if ("hashCode".equals(method.getName())) {
            return hashCode();
        } else if ("toString".equals(method.getName())) {
            return toString();
        }
        return methodInvokeHandlerMap.get(method).invoke(args);
    }

    // … …
}

JDK URL调用

上面最终的HttpMethodInvoker中会使用HttpClient进行远程调用就不赘述了，这里看一下Feign原来是如何使用Jdk原生URLConnection进行Http调用的

它会将调用的内容打包成一个Request实例交给Client，然后Client用这个Request构造一个 HttpURLConnection 来进行连接，并发送和接收消息

feign.Client
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
public static class Default implements Client {

    // ...

    @Override
    public Response execute(Request request, Options options) throws IOException {
      HttpURLConnection connection = convertAndSend(request, options);
      return convertResponse(connection);
    }

    HttpURLConnection convertAndSend(Request request, Options options) throws IOException {
      final HttpURLConnection connection = (HttpURLConnection) new URL(request.url()).openConnection(); // 创建连接实例
      if (connection instanceof HttpsURLConnection) {
        HttpsURLConnection sslCon = (HttpsURLConnection) connection;
        if (sslContextFactory != null) {
          sslCon.setSSLSocketFactory(sslContextFactory);
        }
        if (hostnameVerifier != null) {
          sslCon.setHostnameVerifier(hostnameVerifier);
        }
      }
      connection.setConnectTimeout(options.connectTimeoutMillis()); // 设置连接超时
      connection.setReadTimeout(options.readTimeoutMillis()); // 设置响应超时
      connection.setAllowUserInteraction(false);
      connection.setInstanceFollowRedirects(true);
      connection.setRequestMethod(request.method());

      Collection<String> contentEncodingValues = request.headers().get(CONTENT_ENCODING);
      boolean gzipEncodedRequest = contentEncodingValues != null && contentEncodingValues.contains(ENCODING_GZIP);
      boolean deflateEncodedRequest = contentEncodingValues != null && contentEncodingValues.contains(ENCODING_DEFLATE);
      boolean hasAcceptHeader = false;
      Integer contentLength = null;
      for (String field : request.headers().keySet()) {
        if (field.equalsIgnoreCase("Accept")) {
          hasAcceptHeader = true;
        }
        for (String value : request.headers().get(field)) {
          if (field.equals(CONTENT_LENGTH)) {
            if (!gzipEncodedRequest && !deflateEncodedRequest) {
              contentLength = Integer.valueOf(value);
              connection.addRequestProperty(field, value);
            }
          } else {
            connection.addRequestProperty(field, value);
          }
        }
      }
      // Some servers choke on the default accept string.
      if (!hasAcceptHeader) {
        connection.addRequestProperty("Accept", "*/*");
      }

      if (request.body() != null) {
        if (contentLength != null) {
          connection.setFixedLengthStreamingMode(contentLength);
        } else {
          connection.setChunkedStreamingMode(8196);
        }
        connection.setDoOutput(true);
        OutputStream out = connection.getOutputStream(); // 进行连接，并读取响应
        if (gzipEncodedRequest) {
          out = new GZIPOutputStream(out);
        } else if (deflateEncodedRequest) {
          out = new DeflaterOutputStream(out);
        }
        try {
          out.write(request.body());
        } finally {
          try {
            out.close();
          } catch (IOException suppressed) { // NOPMD
          }
        }
      }
      return connection;
    }
}

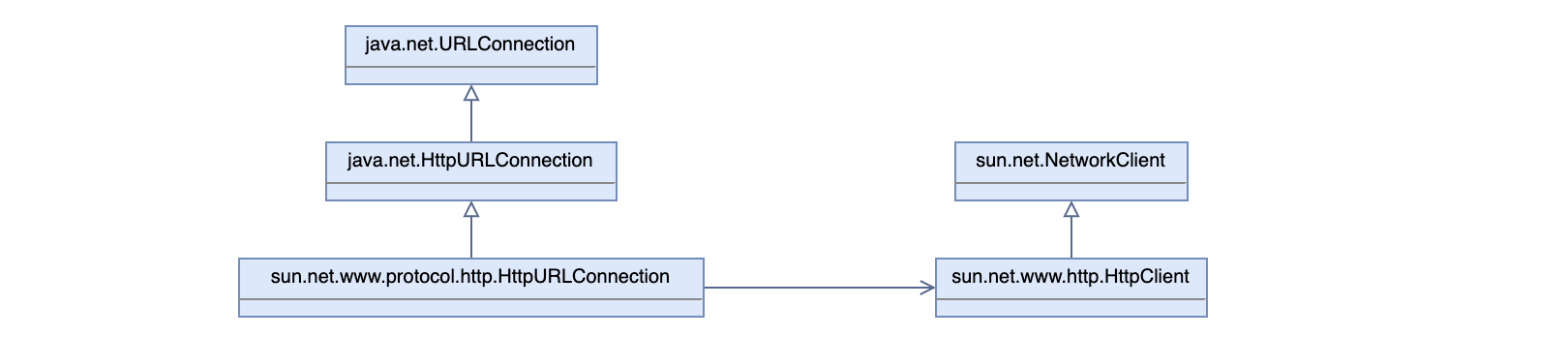

HttpURLConnection

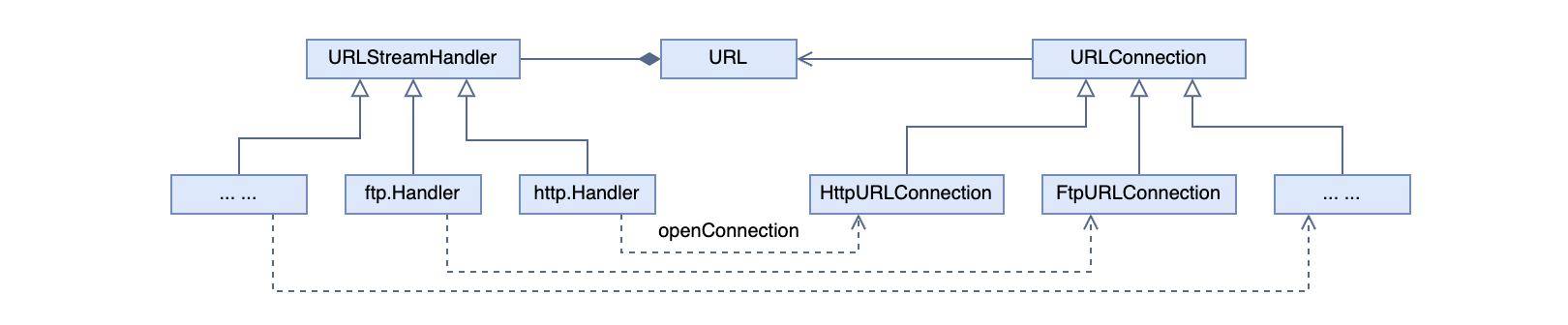

在URL的构造器中会解析出协议protocol，设置协议对应的 URLStreamHandler，它其实是各种协议连接的一个抽象工厂

java.net.URL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
public URL(URL context, String spec, URLStreamHandler handler) throws MalformedURLException{
    String original = spec;
    int i, limit, c;
    int start = 0;
    String newProtocol = null;
    boolean aRef=false;
    boolean isRelative = false;

    // Check for permission to specify a handler
    if (handler != null) {
        @SuppressWarnings("removal")
        SecurityManager sm = System.getSecurityManager();
        if (sm != null) {
            checkSpecifyHandler(sm);
        }
    }

    try {
        limit = spec.length();
        while ((limit > 0) && (spec.charAt(limit - 1) <= ' ')) {
            limit--;        //eliminate trailing whitespace
        }
        while ((start < limit) && (spec.charAt(start) <= ' ')) {
            start++;        // eliminate leading whitespace
        }

        if (spec.regionMatches(true, start, "url:", 0, 4)) {
            start += 4;
        }
        if (start < spec.length() && spec.charAt(start) == '#') {
            /* we're assuming this is a ref relative to the context URL.
             * This means protocols cannot start w/ '#', but we must parse
             * ref URL's like: "hello:there" w/ a ':' in them.
             */
            aRef=true;
        }
        for (i = start ; !aRef && (i < limit) && ((c = spec.charAt(i)) != '/') ; i++) {
            if (c == ':') {
                String s = toLowerCase(spec.substring(start, i));
                if (isValidProtocol(s)) {
                    newProtocol = s;
                    start = i + 1;
                }
                break;
            }
        }

        // Only use our context if the protocols match.
        protocol = newProtocol;
        if ((context != null) && ((newProtocol == null) || newProtocol.equalsIgnoreCase(context.protocol))) {
            // inherit the protocol handler from the context
            // if not specified to the constructor
            if (handler == null) {
                handler = context.handler;
            }

            // If the context is a hierarchical URL scheme and the spec
            // contains a matching scheme then maintain backwards
            // compatibility and treat it as if the spec didn't contain
            // the scheme; see 5.2.3 of RFC2396
            if (context.path != null && context.path.startsWith("/"))
                    newProtocol = null;

            if (newProtocol == null) {
                protocol = context.protocol;
                authority = context.authority;
                userInfo = context.userInfo;
                host = context.host;
                port = context.port;
                file = context.file;
                path = context.path;
                isRelative = true;
            }
        }

        if (protocol == null) {
            throw new MalformedURLException("no protocol: "+original);
        }

        // Get the protocol handler if not specified or the protocol
        // of the context could not be used
        if (handler == null && (handler = getURLStreamHandler(protocol)) == null) {
            throw new MalformedURLException("unknown protocol: "+protocol);
        }
        this.handler = handler;

        i = spec.indexOf('#', start);
        if (i >= 0) {
            ref = spec.substring(i + 1, limit);
            limit = i;
        }

        /*
         * Handle special case inheritance of query and fragment
         * implied by RFC2396 section 5.2.2.
         */
        if (isRelative && start == limit) {
            query = context.query;
            if (ref == null) {
                ref = context.ref;
            }
        }
        handler.parseURL(this, spec, start, limit);
    } catch(MalformedURLException e) {
        throw e;
    } catch(Exception e) {
        MalformedURLException exception = new MalformedURLException(e.getMessage());
        exception.initCause(e);
        throw exception;
    }
}
  • 然后调用openConnection的话，就是使用URLStreamHandler来创建对应的URLConnection了
java.net.URL
1
2
3
public URLConnection openConnection() throws java.io.IOException {
    return handler.openConnection(this);
}

不过这里只是创建了一个连接实例，真正进行连接还需要主动调用connect()

Returns a URLConnection instance that represents a connection to the remote object referred to by the URL.
A new instance of URLConnection is created every time when invoking the URLStreamHandler.openConnection(URL) method of the protocol handler for this URL.
It should be noted that a URLConnection instance does not establish the actual network connection on creation. This will happen only when calling URLConnection.connect().
If for the URL’s protocol (such as HTTP or JAR), there exists a public, specialized URLConnection subclass belonging to one of the following packages or one of their subpackages: java.lang, java.io, java.util, java.net, the connection returned will be of that subclass. For example, for HTTP an HttpURLConnection will be returned, and for JAR a JarURLConnection will be returned.

具体连接时，它会先将状态置为连接中connecting，然后再进行连接，当然连接之前它还会检查下是否已经connected

sun.net.www.protocol.http.HttpURLConnection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public void connect() throws IOException {
    lock();
    try {
        connecting = true;
    } finally {
        unlock();
    }
    plainConnect();
}

protected void plainConnect() throws IOException {
    lock();
    try {
        if (connected) {
            return;
        }
    } finally {
        unlock();
    }
    SocketPermission p = URLtoSocketPermission(this.url);
    if (p != null) {
        try {
            AccessController.doPrivilegedWithCombiner(
                new PrivilegedExceptionAction<>() {
                    public Void run() throws IOException {
                        plainConnect0();
                        return null;
                    }
                }, null, p
            );
        } catch (PrivilegedActionException e) {
            throw (IOException) e.getException();
        }
    } else {
        // run without additional permission
        plainConnect0();
    }
}

plainConnect0 中会新建HttpClient实例，并将真正的建立连接工作委托给它，到这里基本就交给sun提供的网络工具包了

sun.net.www.http.HttpClient
1
2
3
4
5
6
7
8
9
10
11
12
13
protected HttpClient(URL url, Proxy p, int to) throws IOException {
    proxy = (p == null) ? Proxy.NO_PROXY : p;
    this.host = url.getHost();
    this.url = url;
    port = url.getPort();
    if (port == -1) {
        port = getDefaultPort();
    }
    setConnectTimeout(to);

    capture = HttpCapture.getCapture(url);
    openServer();
}

最终还是创建Socket实例进行连接，到这里也可以看到connectTimeout和readTimeout的最终设置了

sun.net.NetworkClient
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
protected Socket serverSocket = null;

public void openServer(String server, int port) throws IOException, UnknownHostException {
    if (serverSocket != null)
        closeServer();
    serverSocket = doConnect (server, port);
    try {
        serverOutput = new PrintStream(new BufferedOutputStream(serverSocket.getOutputStream()), true, encoding);
    } catch (UnsupportedEncodingException e) {
        throw new InternalError(encoding +"encoding not found", e);
    }
    serverInput = new BufferedInputStream(serverSocket.getInputStream());
}

protected Socket doConnect (String server, int port) throws IOException, UnknownHostException {
    Socket s;
    if (proxy != null) {
        if (proxy.type() == Proxy.Type.SOCKS) {
            s = AccessController.doPrivileged(
                    new PrivilegedAction<>() {
                        public Socket run() {
                            return new Socket(proxy);
                        }
                    });
        } else if (proxy.type() == Proxy.Type.DIRECT) {
            s = createSocket();
        } else {
            // Still connecting through a proxy
            // server & port will be the proxy address and port
            s = new Socket(Proxy.NO_PROXY);
        }
    } else {
        s = createSocket();
    }

    // Instance specific timeouts do have priority, that means
    // connectTimeout & readTimeout (-1 means not set)
    // Then global default timeouts
    // Then no timeout.
    if (connectTimeout >= 0) {
        s.connect(new InetSocketAddress(server, port), connectTimeout);
    } else {
        if (defaultConnectTimeout > 0) {
            s.connect(new InetSocketAddress(server, port), defaultConnectTimeout);
        } else {
            s.connect(new InetSocketAddress(server, port));
        }
    }
    if (readTimeout >= 0)
        s.setSoTimeout(readTimeout);
    else if (defaultSoTimeout > 0) {
        s.setSoTimeout(defaultSoTimeout);
    }
    return s;
}

不支持Patch方法

这里不明白为什么Jdk的HttpURLConnection不支持Patch，而且写死了，好像也不打算修改了，也可能是真正使用这个Api的人实在太少了

java.net.HttpURLConnection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
private static final String[] methods = {
    "GET", "POST", "HEAD", "OPTIONS", "PUT", "DELETE", "TRACE"
};

public void setRequestMethod(String method) throws ProtocolException {
    if (connected) {
        throw new ProtocolException("Can't reset method: already connected");
    }
    // This restriction will prevent people from using this class to
    // experiment w/ new HTTP methods using java.  But it should
    // be placed for security - the request String could be
    // arbitrarily long.

    for (int i = 0; i < methods.length; i++) {
        if (methods[i].equals(method)) {
            if (method.equals("TRACE")) {
                SecurityManager s = System.getSecurityManager();
                if (s != null) {
                    s.checkPermission(new NetPermission("allowHttpTrace"));
                }
            }
            this.method = method;
            return;
        }
    }
    throw new ProtocolException("Invalid HTTP method: " + method);
}

Spring加载

HttpClientBeanDefinitionRegistrar

这里也是通过ImportBeanDefinitionRegistrar进行引入的，但是不希望再手动指定一个scan路径，所以就直接默认就扫一下ComponentScan指定的路径，以及启动类下面的路径

https://github.com/cowave5/http-client/blob/master/src/main/java/com/cowave/commons/client/http/register/HttpClientBeanDefinitionRegistrar.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
public class HttpClientBeanDefinitionRegistrar implements ImportBeanDefinitionRegistrar {

    @Override
    public void registerBeanDefinitions(AnnotationMetadata meta, @NonNull BeanDefinitionRegistry registry) {
        TreeSet<String> packageSet = new TreeSet<>();
        String[] beanNames = registry.getBeanDefinitionNames();

        // 省掉package指定扫描，就检查下启动类下的路径，以及@ComponentScan指定的路径
        try {
            for (String beanName : beanNames) {
                BeanDefinition beanDefinition = registry.getBeanDefinition(beanName);
                String className = beanDefinition.getBeanClassName();
                if (className != null) {
                    Class<?> clazz = Class.forName(className);

                    // 启动类路径
                    SpringBootApplication springBoot = clazz.getAnnotation(SpringBootApplication.class);
                    if (springBoot != null) {
                        packageSet.add(clazz.getPackage().getName());
                    }

                    // 扫描类路径
                    ComponentScan componentScan = clazz.getAnnotation(ComponentScan.class);
                    if (componentScan != null) {
                        String[] values = componentScan.value();
                        String[] basePackages = componentScan.basePackages();
                        packageSet.addAll(Arrays.asList(values));
                        packageSet.addAll(Arrays.asList(basePackages));
                    }
                }
            }
        } catch (ClassNotFoundException e) {
            throw new ApplicationContextException("", e);
        }

        List<String> packageList = new ArrayList<>(packageSet);

        // 合并package
        List<String> packages = new ArrayList<>();
        for(int right = packageList.size() - 1; right >= 0; right--){
            boolean hasPrefix = false;
            for(int i = right - 1; i >= 0; i--){
                if(packageList.get(right).startsWith(packageList.get(i) + ".")){
                    hasPrefix = true;
                    break;
                }
            }
            if(hasPrefix){
                continue;
            }
            packages.add(packageList.get(right));
        }

        // 扫描注册
        for(String pack : packages){
            Reflections reflections = new Reflections(pack);
            for(Class<?> clazz : reflections.getTypesAnnotatedWith(HttpClient.class)){
                HttpClient feign = AnnotationUtils.getAnnotation(clazz, HttpClient.class);
                if(feign == null){
                    continue;
                }

                BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(clazz);
                GenericBeanDefinition beanDefinition = (GenericBeanDefinition)builder.getBeanDefinition();
                beanDefinition.setAutowireMode(GenericBeanDefinition.AUTOWIRE_BY_TYPE);
                beanDefinition.getPropertyValues().add("targetClass", clazz);
                beanDefinition.setBeanClass(HttpClientFactoryBean.class);
                registry.registerBeanDefinition(clazz.getSimpleName(), beanDefinition);
            }
        }
    }
}

HttpClientFactoryBean

扫描注入的是一个FactoryBean，然后实例化时再创建对应的代理实例

https://github.com/cowave5/http-client/blob/master/src/main/java/com/cowave/commons/client/http/register/HttpClientFactoryBean.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public class HttpClientFactoryBean<T> implements FactoryBean<T>, EmbeddedValueResolverAware, ApplicationContextAware {

    private ApplicationContext applicationContext;

    private StringValueResolver valueResolver;

    private Class<T> targetClass;

    public HttpClientFactoryBean() {

    }

    @Override
    public void setApplicationContext(@NonNull ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }

    @Override
    public void setEmbeddedValueResolver(@NonNull StringValueResolver valueResolver) {
        this.valueResolver = valueResolver;
    }

    @Override
    public T getObject() throws UnsupportedEncodingException {
        HttpClient httpClient = AnnotationUtils.getAnnotation(targetClass, HttpClient.class);
        return HttpProxyFactory.newProxy(targetClass, httpClient, applicationContext, valueResolver);
    }

    @Override
    public Class<?> getObjectType() {
        return targetClass;
    }
}


参考：
